Hydraulic Valve Remote Control SystemDJC-VK hydraulic valves remote control system consists of hydraulic pump station, valves control console (box), solenoid valve cabinet, hydraulic actuator, emergency hand pump, hydraulic actuated butterfly valve, hydraulic actuated check stop valve, hydra

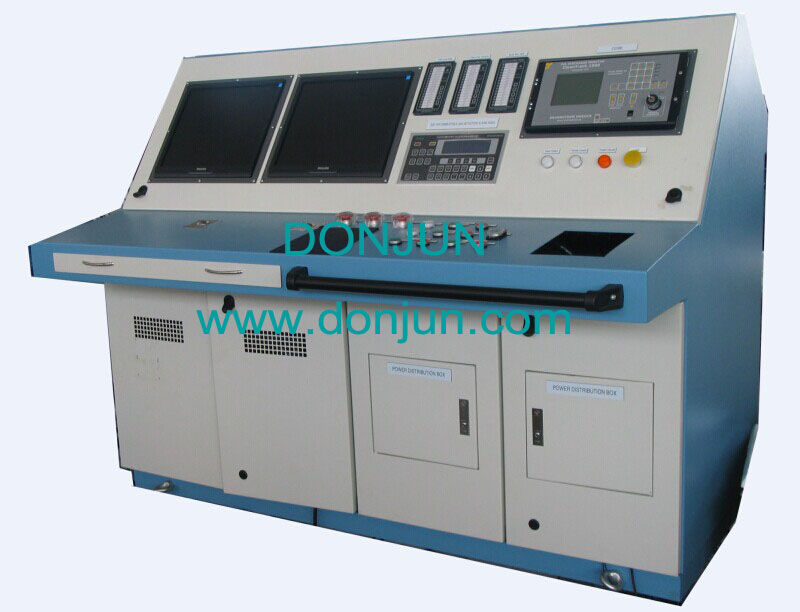

Control console and control cabinetThe control console is used to control all valves. A mimic panel on the front of control console which is made according to the ballast tank and oil pipeline. The mimic panel is installed with the indicating lamps displaying the valves open/close, meter i

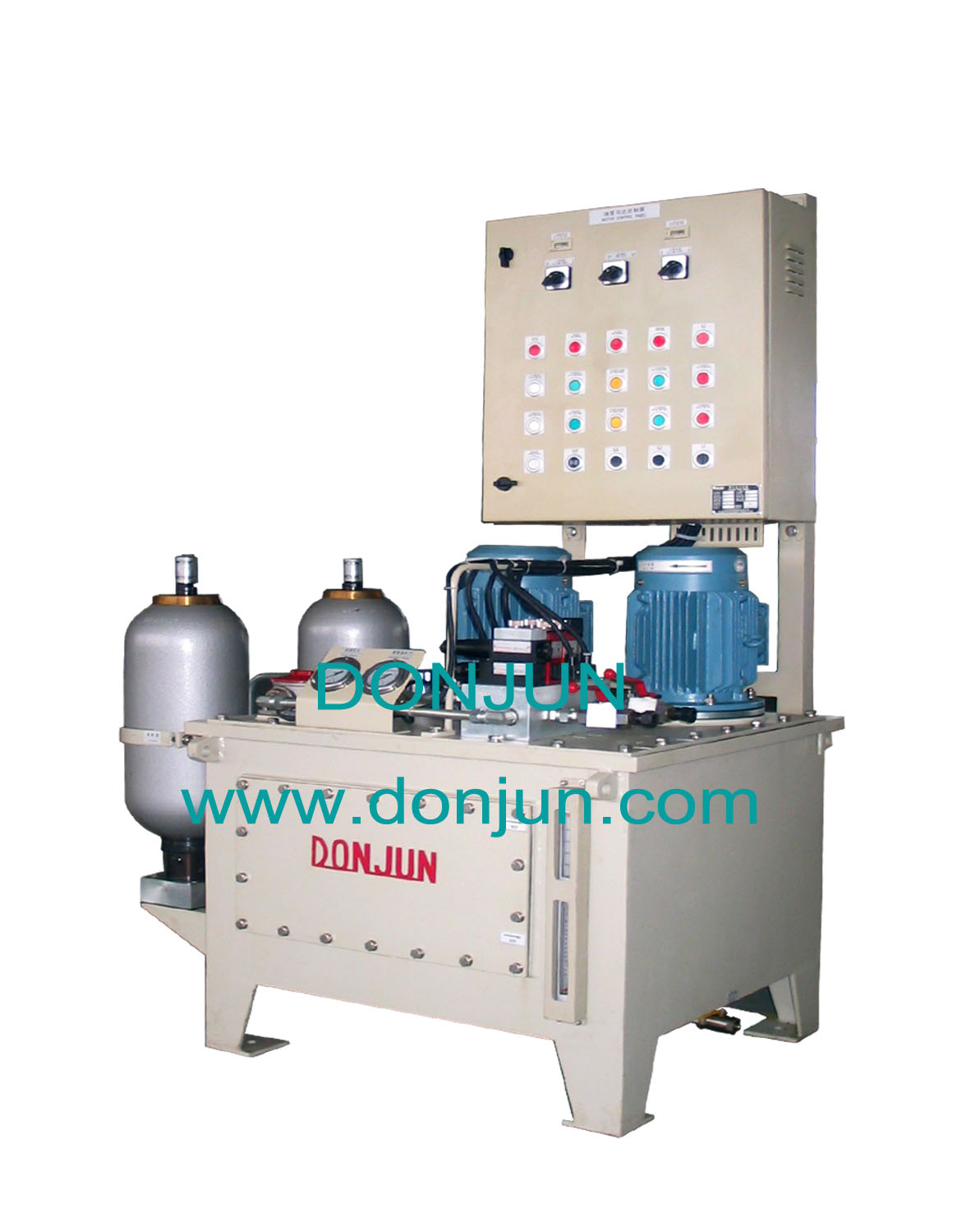

Hydraulic pump unitHydraulic pump station is the core of the hydraulic oil supplying, so that hydraulic remote control valve can be actuated automatically. The high qualified accessories are selected, which results in the stable working state.
Solenoid valve cabinetolenoid valve cabinet includes the solenoid valves and position indicator (optional), used to control high pressure oil to actuator, and indicate the working status of the actuator.
Hydraulic Actuated ValvesSingle direction actuated butterfly valve can be actuated by only 1 circuit of hydraulic pipe. The system was so simple that can save half hydraulic pipe. With spring reset and accumulator reset type.
