Single Action Butterfly Valve

Single direction actuated butterfly valve can be actuated by only 1 circuit of hydraulic pipe. The system was so simple that can save half hydraulic pipe. With spring reset and accumulator reset type.

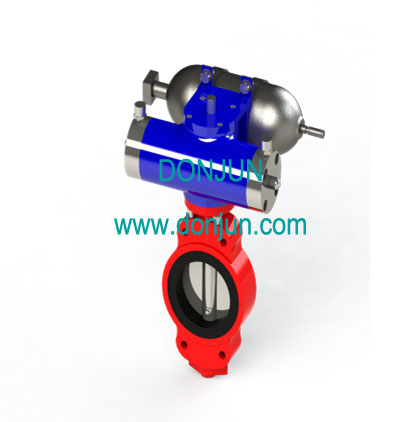

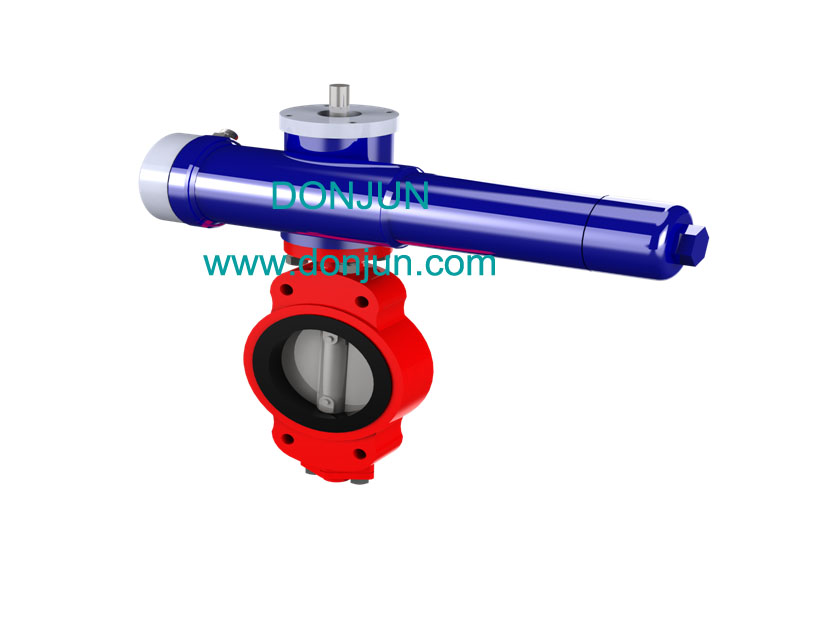

 Spring reset type                                   Accumulator reset type



Double Action Butterfly Valve

The double action butterfly valve was actuated by double direction hydraulic oil.

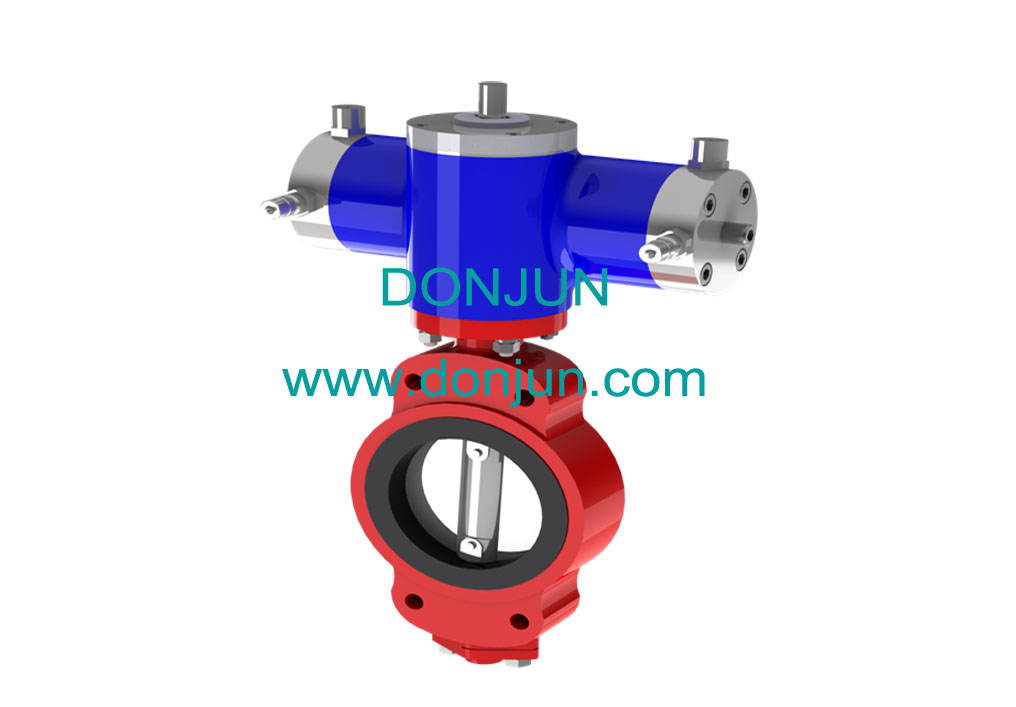

Double action butterfly valve



Screw actuated butterfly valve

Using the hydraulic power, the Screw type actuator can generate the rotate torque directly to actuate the butterfly Valve. Can be worked at 0°~100°adjustable angle range. The actuator have single/double action actuated type.

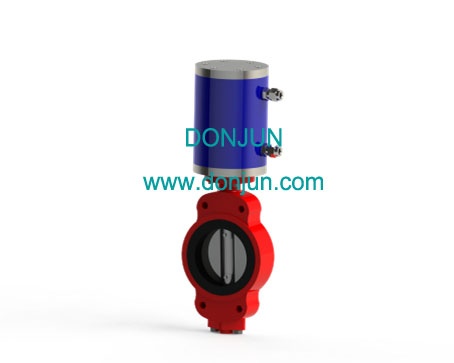

Screw actuated butterfly valve



Single/Double action stop valve/ check stop valve

Hydraulic actuated stop valve and stop check valve, with single action and double action type, can be widely applied in cargo oil system, ballast water system and bilge water system.

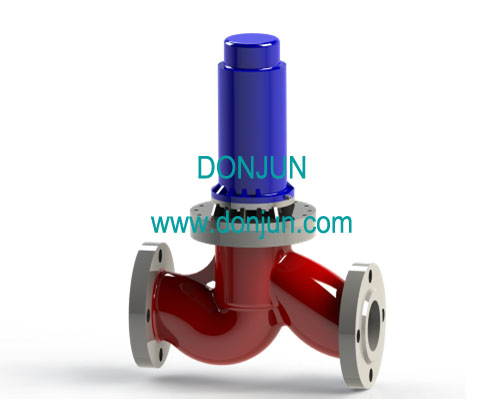

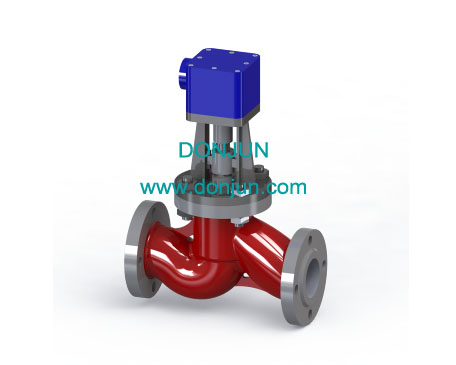

Single action stop/ check stop valve            Double action stop/ check stop valve




Screw actuated stop valve/ check valve

(Isolation valve for FPT collision bulkhead)

Hydraulic screw actuated stop valve and stop check valve, can be widely applied in isolation valve for FPT collision bulkhead, cargo oil system, ballast water system and bilge water system.

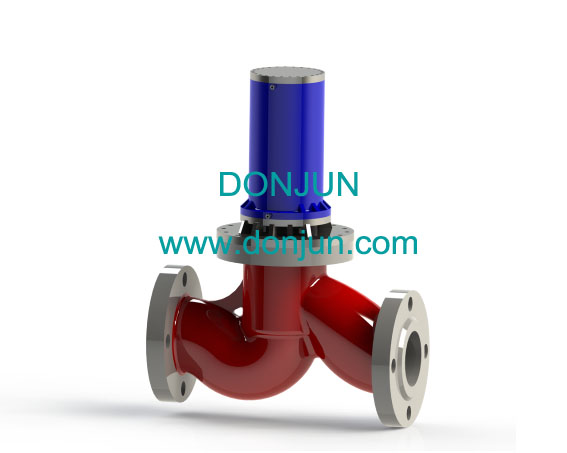

Screw actuated stop valve/check stop valve


Features:
1.Stable and continuous torque output
2.Concise design
3.Saving installation space(concave axis design, single-side operation
4.ISO standard flange
5.Adjust table faucet
6.Robotistic local position indicator(Optional)
7.Other remote position indicator
8.Immersion installation


Technical data:

Rated Output Torsion

1000-20000NM

Protection Class

IP68

Material

Carbonized Steel or Stainless Steel

Weight

10-150Kg

Working Pressure

80Kg/cm2

Test Pressure

400Kg/cm2

Butterfly Valve Diameter

50-1200mm

Seal Material

NBR or Designated Material
