ANTI-FOULING AND CORROSION PREVENTION SYSTEM(MGPS)
BASIC PRINCIPLE：

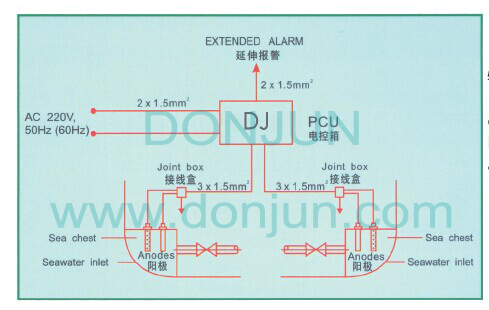

Anti-sea biological electrode (Cu electrode)and anti-corrosion electrode (AI electrode)should be installed at the sea chest and electrolyze by DC. The generated anti-sea biological ions and anti-corrosion ions form electrolyte, then pumped bye sea water pump and distributed to entire sea water cooling pipe system, so as to prevent sea biology fouling and pipe corrosion.
FEATURES：
The anti-sea biological efficiency is above 96%,and the device can prevent the sea biological fouling, but also prevent the pipe corrosion, which can be widely used in the marine, offshore engineering, ocean-going vessels and other sea water piping system.
Easy operation: it can work normally only by adjusting the current.
Long-term operation: under normal circumstance, the device can work long-term stably without special management and monitoring.

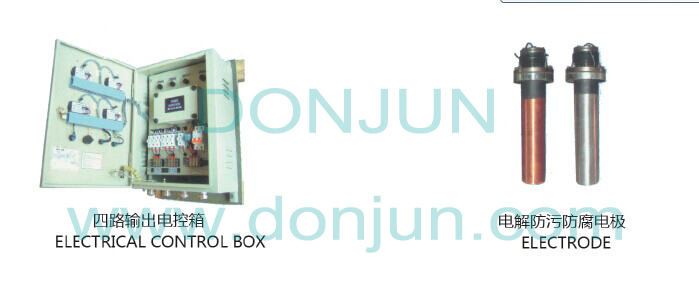

The device is composed of :constant current electrolysis power supply,anti-sea biological electrode, anti-corrosion anode and junction box.
|
TYPE
|
DJAC-n-100
|
DJAC-n-300
|
DJAC-n-500
|
DJAC-n-700
|
DJAC-n-800
|
DJAC-n-1000
|
|
Water Processing Capcity of Sea Chest
|
100m3/h
|
300m3/h
|
500m3/h
|
700m3/h
|
800m3/h
|
1000m3/h
|
|
Power Supply
|
Input
|
AC 1Φ 220V(110V、380V、440V)
|
|
Output
|
Each group has two circuit,current for each circuit is 0~2.0A
|
|
Electrode
|
Diameter Φ75-120（mm） Length：200-700（mm）
|
