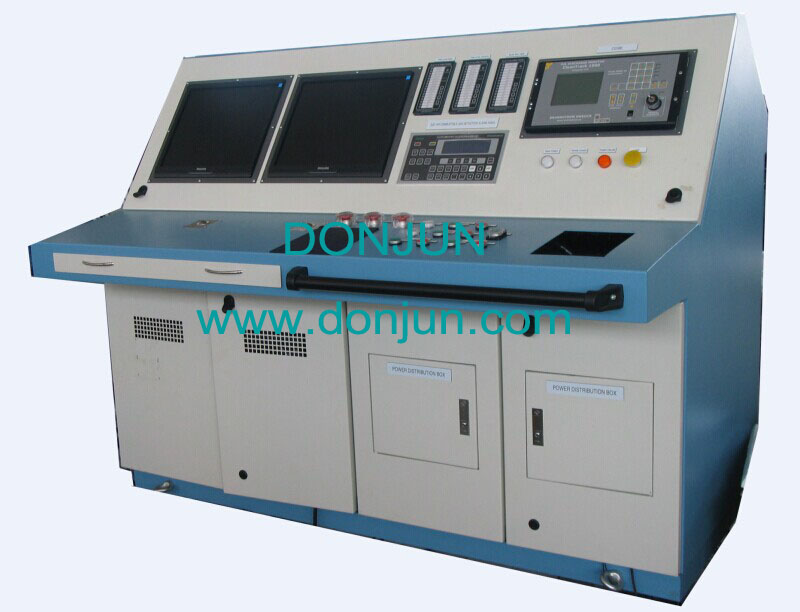

Control console and control cabinet
The control console is used to control all valves. A mimic panel on the front of control console which is made according to the ballast tank and oil pipeline. The mimic panel is installed with the indicating lamps displaying the valves open/close, meter instructing the valves actual position and the control buttons for power pump station etc. Converting locked combined valve at the button of control console used to open/close the valves. The valves position can be observed clearly via the valves position indicators on the control console, and indicating the open/close position on the mimic panel.
Easy operation, Reliable performance.
Technical data:
|
TYPE
|
DJC-VK
|
|
Rated Voltage
|
AC220V,50Hz
|
|
Max controlled loop
|
200
|
|
Consumption Power
|
≤1KVA
|
|
Protection Class
|
IP22
|
|
Size
|
Abt.2000×900×1500mm
|
