Screw actuated butterfly valve


Using the hydraulic power, the Screw type actuator can generate the rotate torque directly to actuate the butterfly Valve. Can be worked at 0°~100°adjustable angle range. The actuator have single/double action actuated type.

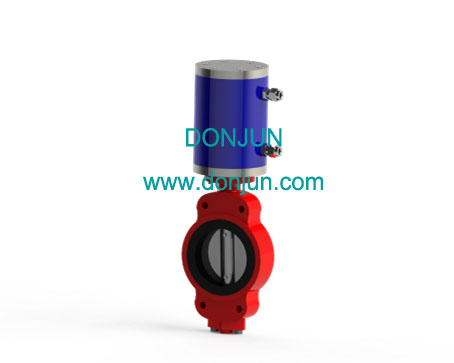

Screw actuated butterfly valve



Features:
1.Stable and continuous torque output
2.Concise design
3.Saving installation space(concave axis design, single-side operation
4.ISO standard flange
5.Adjust table faucet
6.Robotistic local position indicator(Optional)
7.Other remote position indicator

8.Immersion installation


Technical data:

Rated Output Torsion

1000-20000NM

Protection Class

IP68

Material

Carbonized Steel or Stainless Steel

Weight

10-150Kg

Working Pressure

80Kg/cm2

Test Pressure

400Kg/cm2

Butterfly Valve Diameter

50-1200mm

Seal Material

NBR or Designated Material
