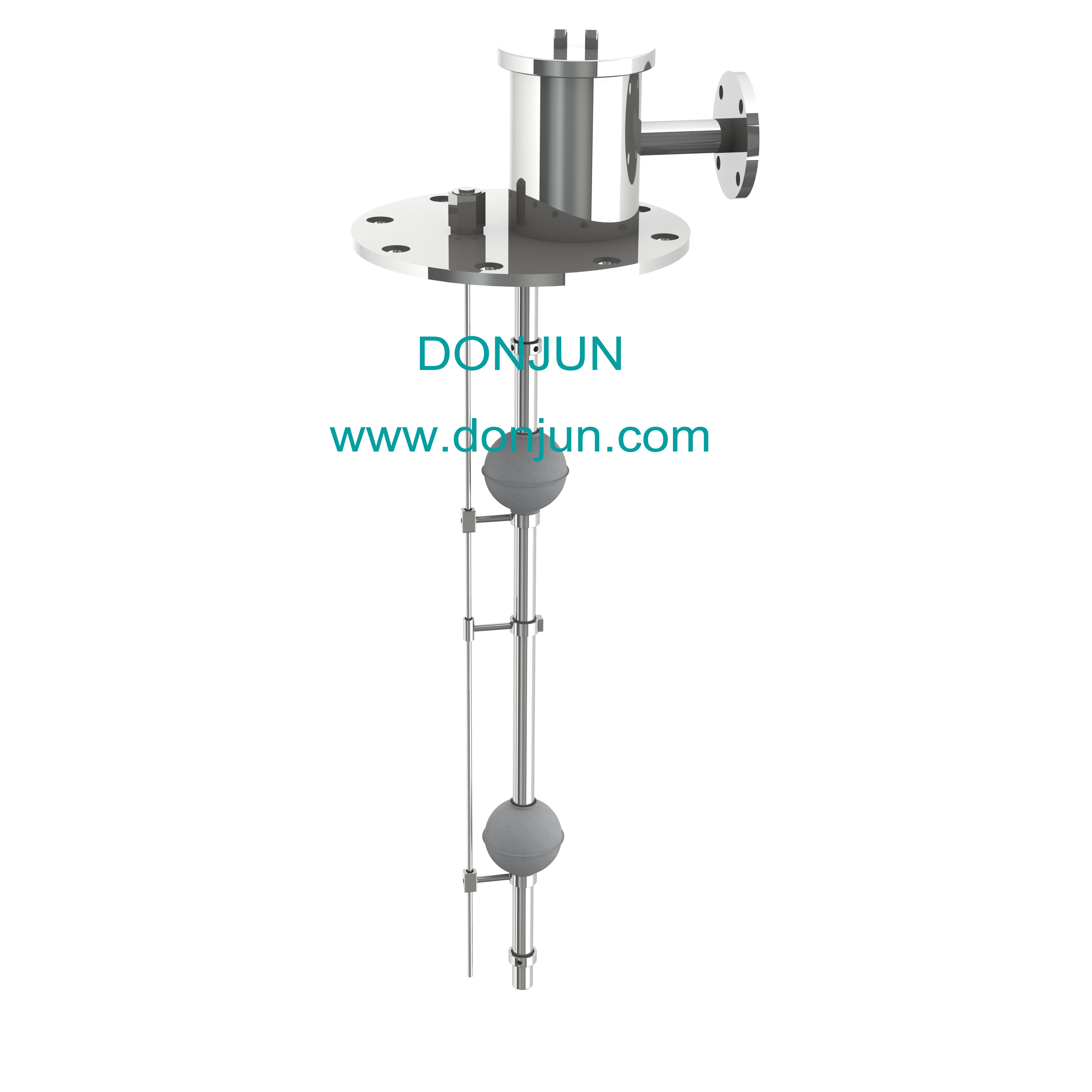

Dual floater sensor
The stainless steel floater with magnetic core
of the float sensor,float with the tank liquid level change, to measure the
resistance value of the tube,and with the magnetron on-off,make the floater
height and resistance value to the linear match.
Technical data
Type: STK333-AR1-D；
Working voltage: DC24V;
Accuracy: ±5mm；
Max. Working pressure: 1MPa;
Working temperature: -25℃～200℃；
Output: Dry contact
Protection class：IP68；
Explosion-proof：Exia Ⅱ CT6
